Louvre Windows
HAHN louvre windows are high-performance, thermally-broken operable elements for building facades. The windows feature an aesthetically clean and minimalist design, maximising natural ventilation and airflow, albeit not compromising on air-sealing.
HAHN louvre windows are available in a variety of triple-, double- and single-glazed design options, which can be operated manually, pneumatically or electrically. HAHN louvre windows also meet and outperform standards for smoke & heat extraction in the event of a fire.
HAHN LOUVRE WINDOWS
- Simple and seamless integration with RAICO curtain-walls
- Excellent for natural ventilation
- High degree of air tightness when shut
- High-performance double- & triple-glazing, or insulated panels
- High quality, thermally-broken aluminium frames
- Manual, pneumatic and motorised operation options
- Meet European Standards for smoke & heat extraction (EN 12101-2)
- Optimal use of space (minimal extension of panes when open)
- Minimal frame to glass ratio
- External Allglass appearance available
- Longevity due to high-quality finishes and ease of cleaning
- Fall and burglary protection options available
Product Solutions

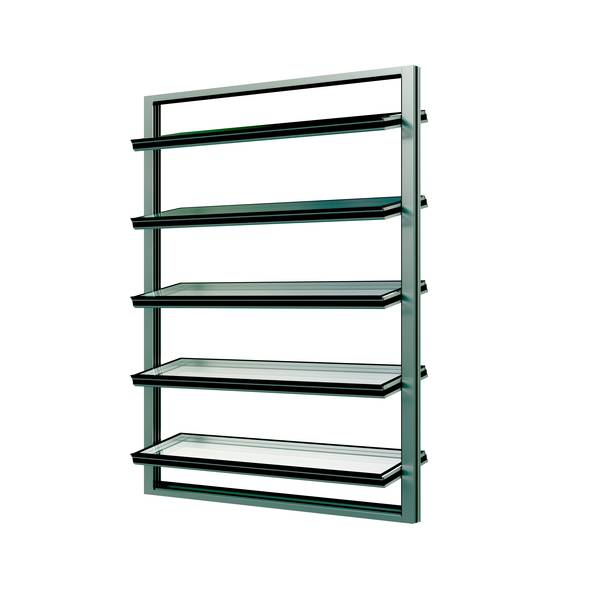

Tairmo
The Tairmo range offers maximum energy efficiency through the use of aluminium extrusions with large thermal breaks, insulated profile cores and triple-glazed units with warm-edge spacers.
Tairmo is the first louvre window to comply with the German Energy Saving Ordinance (EnEV 2012).

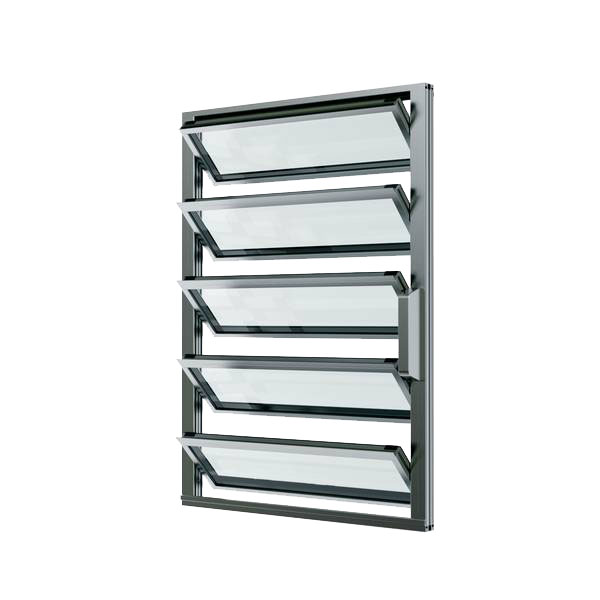

S9-iVt-05
The S9-iVt-05 features outstanding advantages in regards to ventilation, weather tightness and thermal performance as well as a high degree of security against burglary.
The glass inserts are framed with thermally-broken aluminium profiles. The S9-iVt-05 is certified for use as NSHV (Natural Smoke and Heat Ventilation) device according to EN 12101-2. Furthermore, it is available with ball impact protection for use in sports facilities (DIN 18032-3).

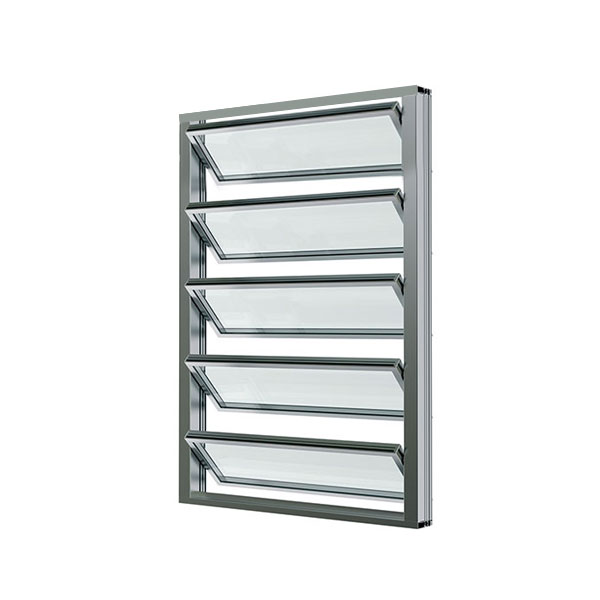

Integral
With an appearance based on the S9-iVt-05 louvre, the Integral louvre comes with the control motor concealed within the frame.
Designed with maintenance in mind, the actuator is easily-accessible without the need to uninstall or dismantle the louvre to gain access.

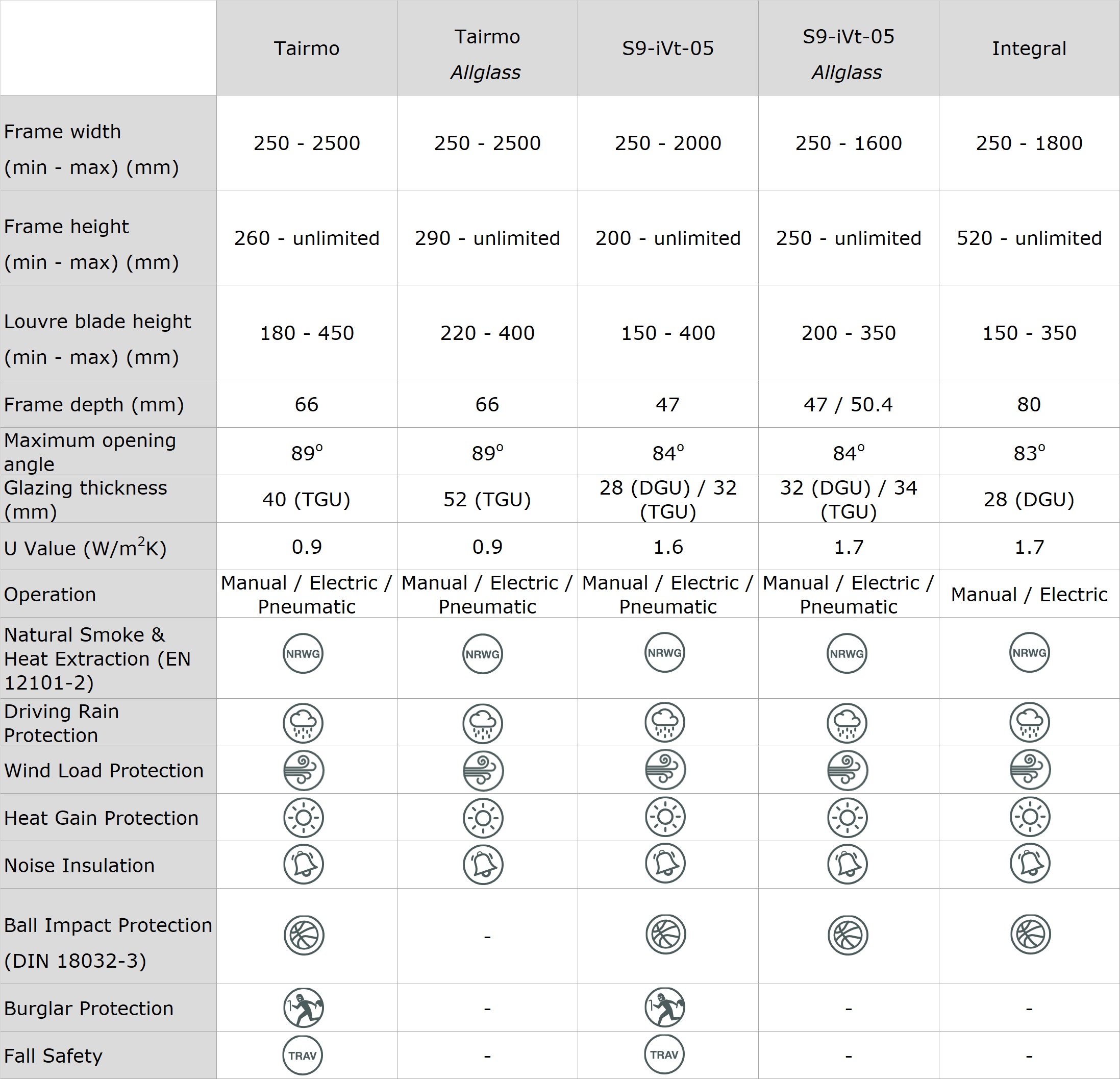

HAHN PRODUCT COMPARISON
